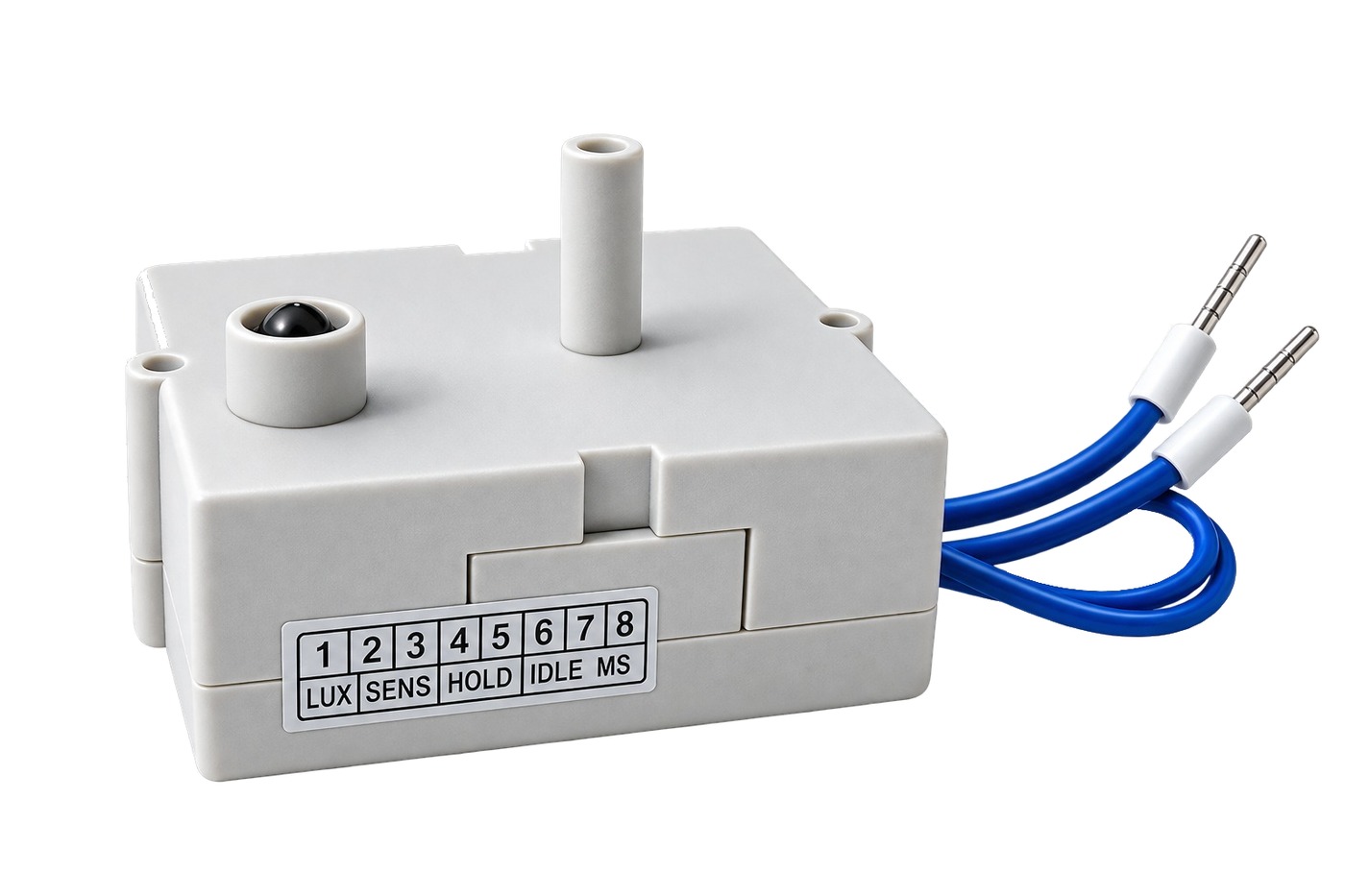

Compact D4i radar motion sensor for smart lighting.
EnergyNode Mini is a D4i radar motion sensor built to disappear inside the luminaire itself. It combines 5.8 GHz radar motion detection with a built-in twilight sensor, so lights only come on when someone is actually there, and only when it's dark enough to matter.
| Dimensions | 38 × 33 × 30 mm |
| Color | RAL 7035 |
| Rated voltage | 12 to 22.5 VDC |
| Average current | 15 mA |
| D4i type | Type-D (single master) |
| Compatible drivers | DALI, DALI-2 and D4i |
| Twilight switch level | 50 lux |
| Radar technology | 5.8 GHz |
| Operating temperature | -20°C to +70°C |
| Humidity | 10-80% RH, non-condensing |
| Ingress protection | IP20 |
Get in touch for full datasheets, pricing or a pilot, or see it in context on the Smart Lighting Indoor page.
